ISO Standard Automatic Hospital Hermetic Sliding Door

Description Specs & Details

Description

Automatic X-ray proof sliding lead doors for hospitals typically consist of several key components, including:

Lead-lined panels: The door panels are lined with lead, which is a dense and heavy metal that provides effective shielding from X-rays. The lead lining can be made from lead sheets, lead blocks, or lead-infused composites.

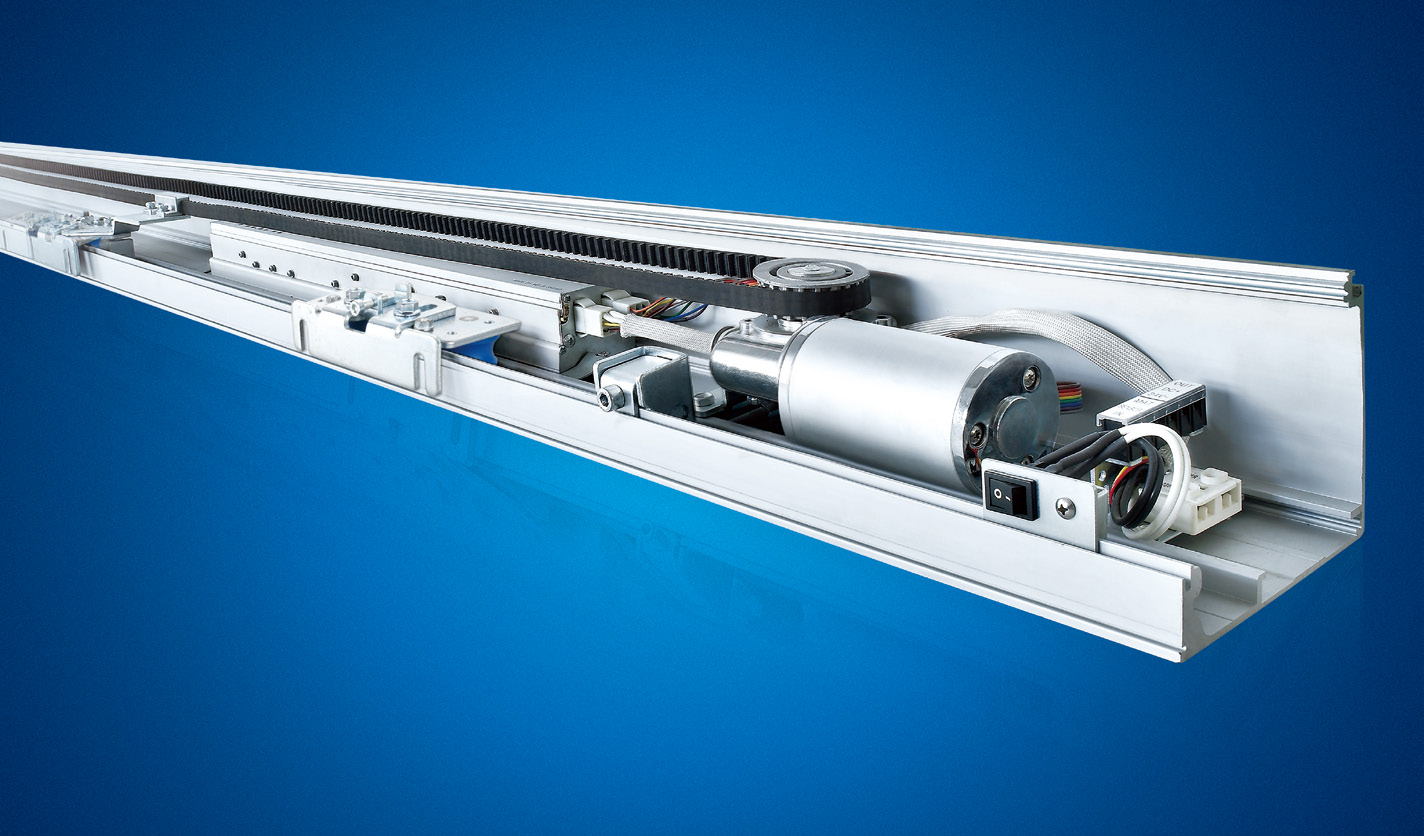

Sliding mechanism: The door panels are mounted on a sliding mechanism that allows them to move smoothly and quietly along tracks. This mechanism typically consists of rollers, guides, and a drive system.

Drive system: The drive system is responsible for moving the door panels. It typically consists of an electric motor, gear reducer, and control circuit. Some systems may also incorporate safety features, such as an emergency stop button and automatic reversal if the door encounters an obstacle.

Control circuit: The control circuit manages the operation of the drive system and the door. It typically includes sensors, switches, and other components that allow the door to be controlled and monitored.

Lead-lined jambs and thresholds: The door opening is surrounded by lead-lined jambs and a threshold, which provide additional shielding against X-rays. These components are typically made from the same materials as the door panels.

X-ray protective seals: The door is equipped with X-ray protective seals to prevent the escape of X-rays. These seals are typically made from flexible materials that can withstand frequent use and provide a tight, secure seal around the door.

These are the basic components of an automatic X-ray proof sliding lead door for hospitals. The exact configuration and materials used may vary depending on the manufacturer and the specific requirements of the application.

Specs & Details

Parameters

Door leaf	1.0 mm galvanized steel plate (honeycomb paper filled)
Track rail cover	high-strength aluminum alloy
Sensor	infrared safety anti-pinch
Gas Tightness	high-strength aluminum alloy all four sides around with sealing joint strip
Size	customized per your structural wall openning
vision panel	customized , double tempered glass / x-ray proof glass
openning	Automatic/Manual(Optional)
Openning/Closing speed	250~500mm/s(adjustable)
Manual pushing force	<100N
CAD drawing	we provide drawing before manufacture doors
